Specifications
|
Operating Pressure |
0-1.0MPa | 0-150psi |
|
Operating Temperature |
0 - 60 °C |
|
Medium |
Air - Water - Vacuum |
|
Applicable Tube |
PU / PA / PE / PVC |
|
Features |
1.Designed for Polyurethane or Nylon tubing.
2.Simple installation pneumatic push in connector. 3.After installation, the direction of the tube can be changed freely. 4.Elliptical release ring help to connect tube easily by manual, no special tools required. 5.Outside (and Inside where applicable) hexagonal wrench tightening. 6. PV fittings are only used for industrial automatic apparatus and can not be applied on any medicinal equipment. |
|
Note |
1.Due to the difference between different monitors, the picture may not reflect the actual
color of the item. quantities for your choice, the more your purchase the best price you get. Thank you! |
How to select quick coupler?
- 1. The connecting thread and pipe shall not be pulled or rotated, otherwise the thread and pipe connection will fall off. In case of pulling or rotating, the rotary joint shall be used.
2. The pipe bending shall be greater than the minimum bending radius, otherwise the pipe is easy to break.
3. Inflammable, explosive or toxic gases such as gas, gas fuel and refrigerant cannot be transported in the pipe.
4. General industrial water can be used.
5. The pulse pressure shall be controlled, and the maximum operating pressure shall not be exceeded, otherwise it may be easily damaged.
Specification Parameters
Condition: New
Warranty: 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Construction works , Energy & Mining
Weight (KG): 0.05
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Type: Fittings
Place of Origin: Zhejiang, China
Brand Name: HOMIPNEU
Material: OPP bag

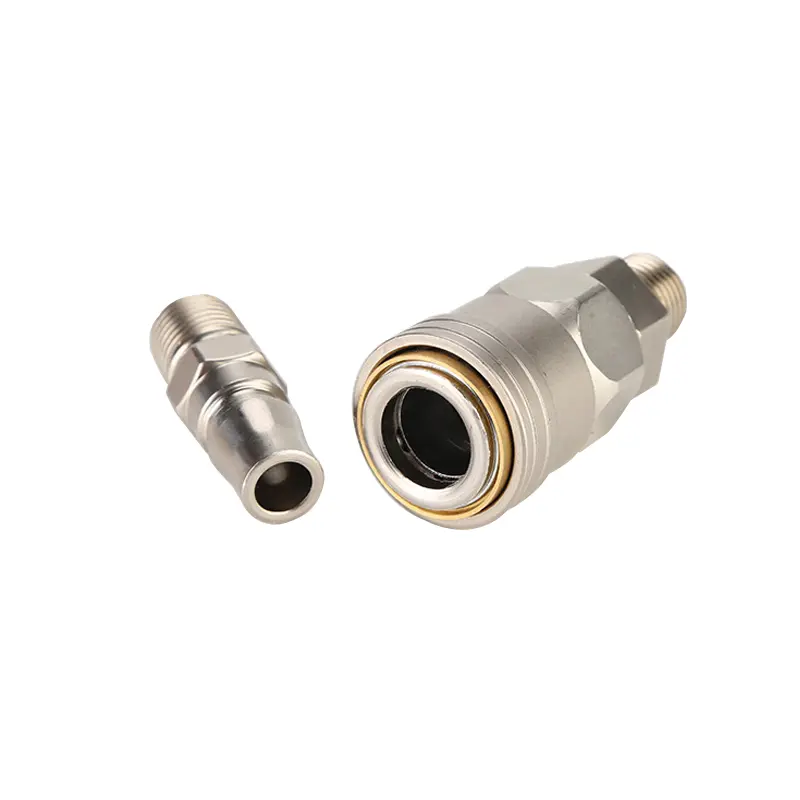

Model number: PC quick coupler
Body Material: PBT
Working Temperature: 0℃~60℃
Working pressure: 10kg
Fluid Type: air
Standard or Nonstandard: Standaard
Pressure Range: 0.1-0.7MPa
Packing: Bag +Box
Size: Standard Size
Thread: G PT NPT BSP
