The Features
1. Fast installation, easy and skillful, saving space.
2. Diversified types may satisfy the need of any pneumatic pipe arrangement.
3. Even after installation, the plastic tube can be freely turned.
4. The release ring adopts ellipse design, which makes disassemble more easy.
5. All conical tube threads are pre-coated with teflon leak proof glue, which secures good sealing performance.
6. Excluding 16 pipes, all PC straight joints have hexagonal socket, which is convenient for installation at narrow places.
How to select quick coupler?
- 1. The connecting thread and pipe shall not be pulled or rotated, otherwise the thread and pipe connection will fall off. In case of pulling or rotating, the rotary joint shall be used.
2. The pipe bending shall be greater than the minimum bending radius, otherwise the pipe is easy to break.
3. Inflammable, explosive or toxic gases such as gas, gas fuel and refrigerant cannot be transported in the pipe.
4. General industrial water can be used.
5. The pulse pressure shall be controlled, and the maximum operating pressure shall not be exceeded, otherwise it may be easily damaged.

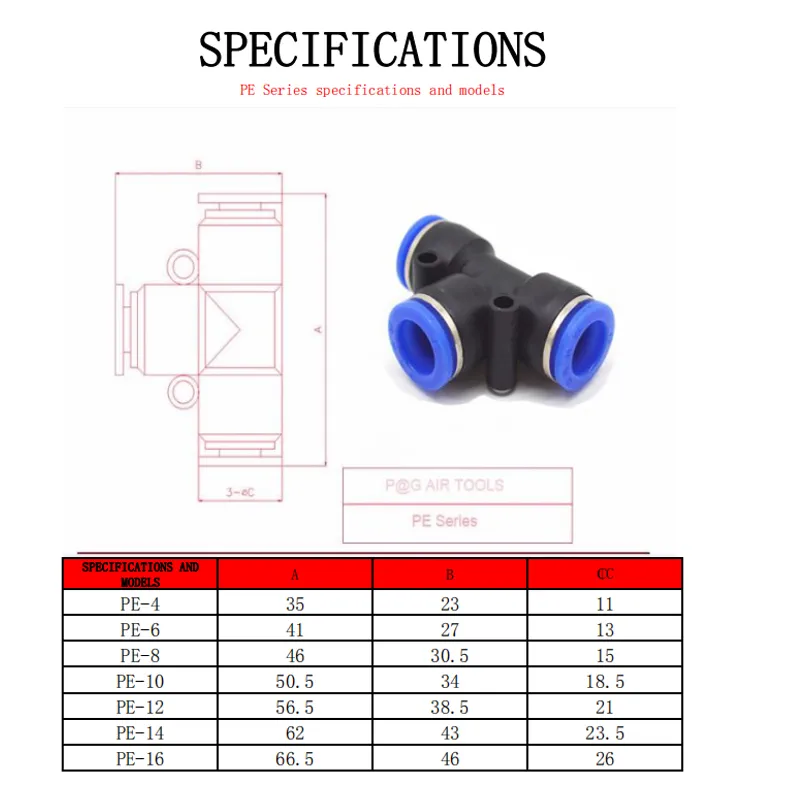

Specification Parameters
Condition: New
Warranty: 1 Year
Applicable Industries: Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Home Use, Retail, Construction works , Energy & Mining
Weight (KG): 0.05
Showroom Location: None
Video outgoing-inspection: Provided
Machinery Test Report: Not Available
Marketing Type: Ordinary Product
Type: Fittings
Place of Origin: Zhejiang, China
Brand Name: HOMIPNEU
Material: OPP bag
Model number: PG
Body Material: PBT
Working Temperature: 0℃~60℃
Working pressure: 10kg
Fluid Type: air
Standard or Nonstandard: Standaard
Pressure Range: 0.1-0.7MPa
Packing: Bag +Box
Size: Standard Size
Thread: G PT NPT BSP
